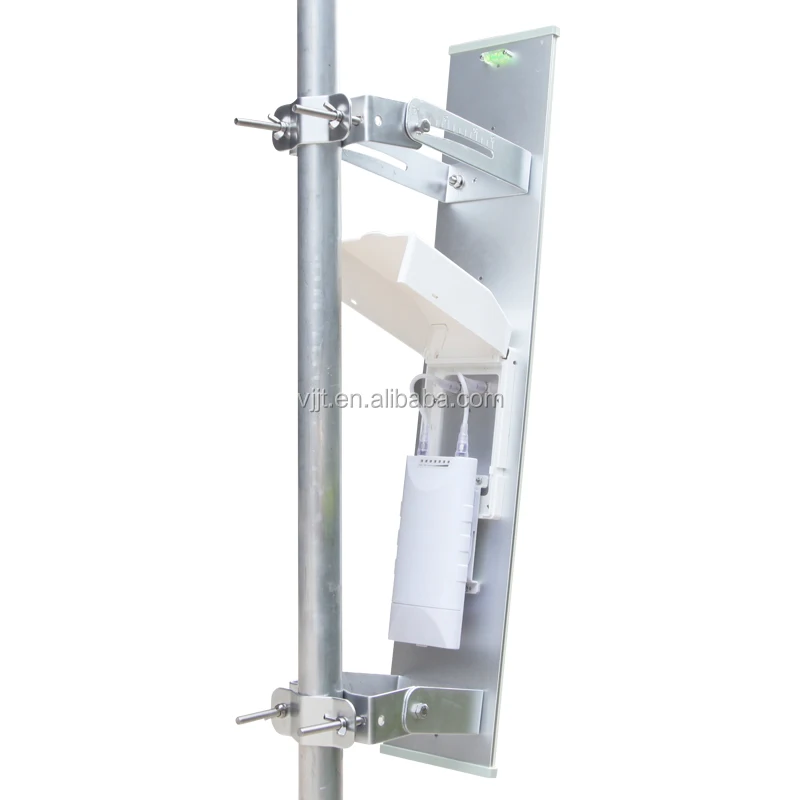

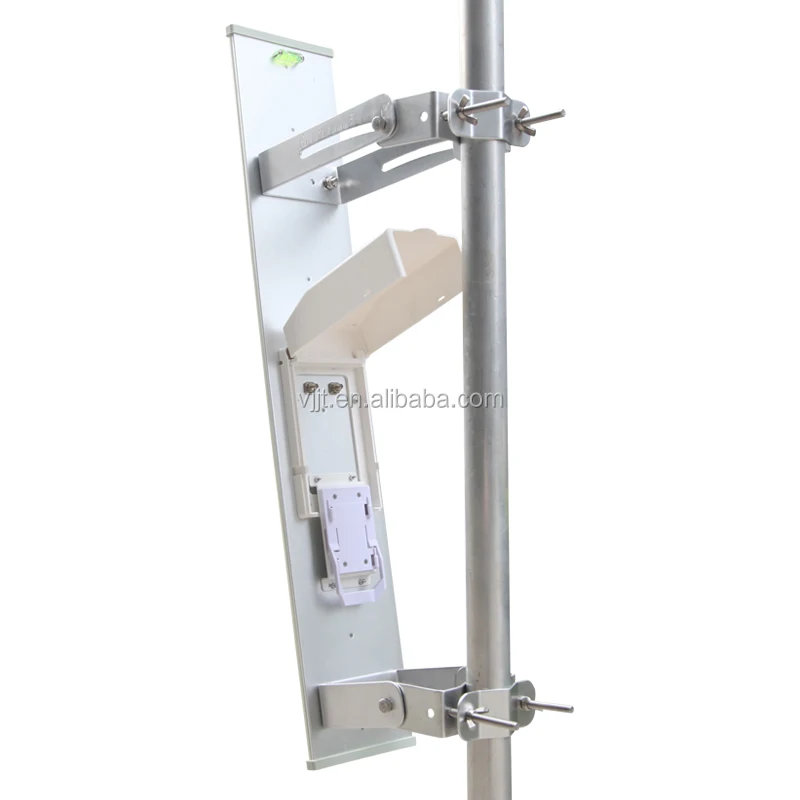

airMAX 2×2 BaseStation Sector Antenna 19dbi

$505,082.00

Category:

Description

Advertisements
Products Description

Features

1.

2.
3.
4.
5.
Product Paramenters
Model
ANT5158D19B-DP
Frequency Range
5100-5850MHz
Gain
18dBi ± 1.5dBi
VSWR
<2
Polarization
Vertical and Horizontal
Isolation
>25dB
Front to Back Ratio
>25dB
Vertical Beamwidth
4° type
Horizontal Beamwidth
120° type
Maximum Power Per Port
50W
Impedance
50Ω
Lighting protection
DC Ground
Connector
2 x RPSMA
Antenna Size
78.5×15×2cm
Antenna Weight
3kg
Antenna color
gray
Diameter of the Pole
Mechanical Tilt
Operational Temperature
-40°C to +70°C (-32°F to +158°F)
Antenna Patterns
contact us

Lanbowan Communication Ltd.

Add:Bldg. #3, NO. 60 LangBao Xi Road, ChanCheng, Foshan, China
Http://www.lanbowan.com
Email:[email protected]

WeChat: 008618666366188
Skype: Lanbowan9
Tel:+86-757-8225 3850
Fax:+86-757-8262 1650
Why Choose Us

Why choose us?

1, We are manufacture ,have our own factory
2, Over 15 years experiences in antenna manufacturing
3, OEM ODM service available
4, 3 years warranty for products
5, ISO ,CE and Patent certificate

Advertisements

Company Profile

Lanbwan

Lanbowan is an international, China-headquartered company,Since our foundation in 2006, we’ve combined forward-focused
technological thinking with a determination to understand and respond to the real needs of our customers.

We design and manufacture precision antennas and offer in-house wireless product development for our customers, including design,
testing, radio integration, and manufacturing capabilities. Lanbowan antennas are deployed in wifi,CBRS, TVWS, small cells, and
devices for the Industrial Internet of Things (IIoT).

We works with you to enable your company to achieve the best possible performance from your wireless devices. We can custom-design
to suit your individual needs or provide highly-economical off-the-shelf solutions.

Reception
Meeting Room

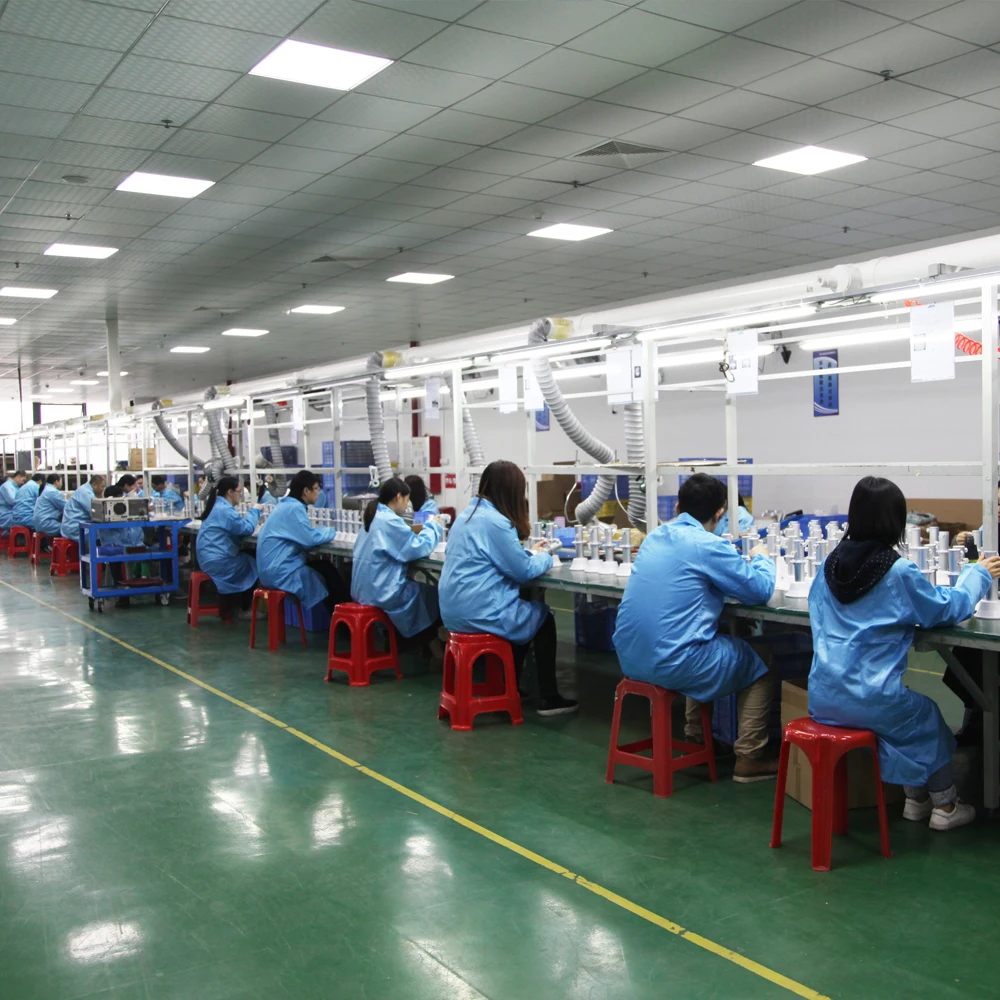

Production workshop

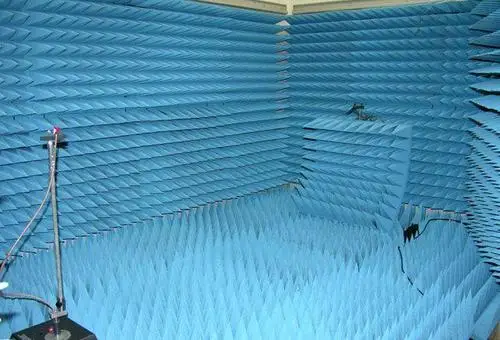

Large-sized Microwave Chamber

Network Analyzer

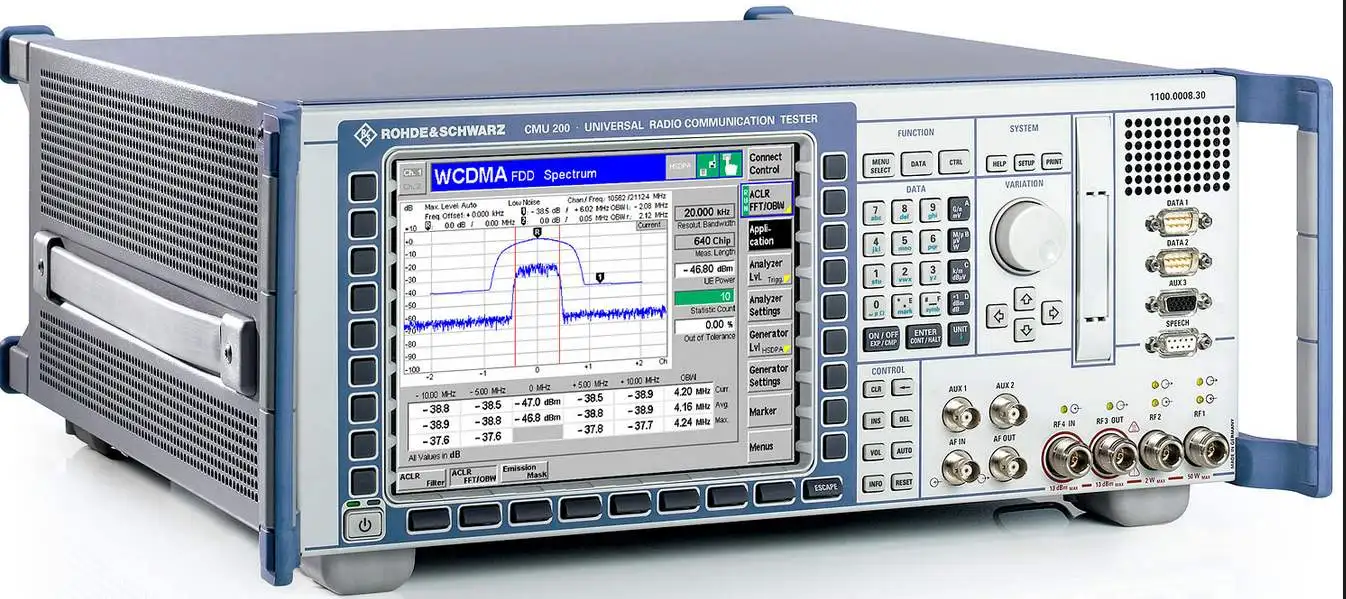

Comprehensive test instrument

Exhibition
CommunicAsia
MWC Barcelona
CTIA Wireless
Gitex
Wispa
MUM MIKROTIK
