Product Description

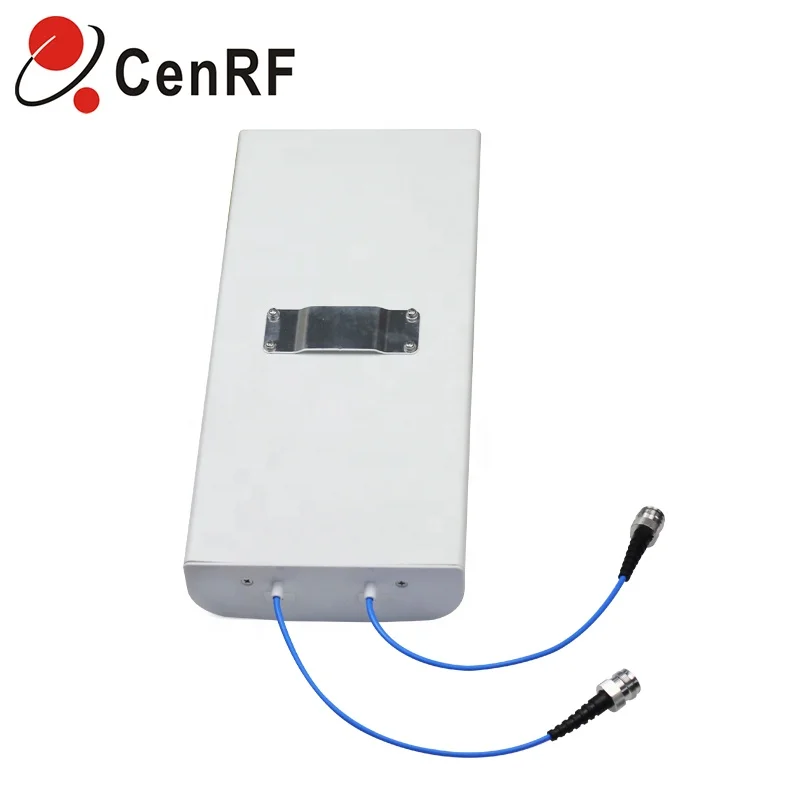

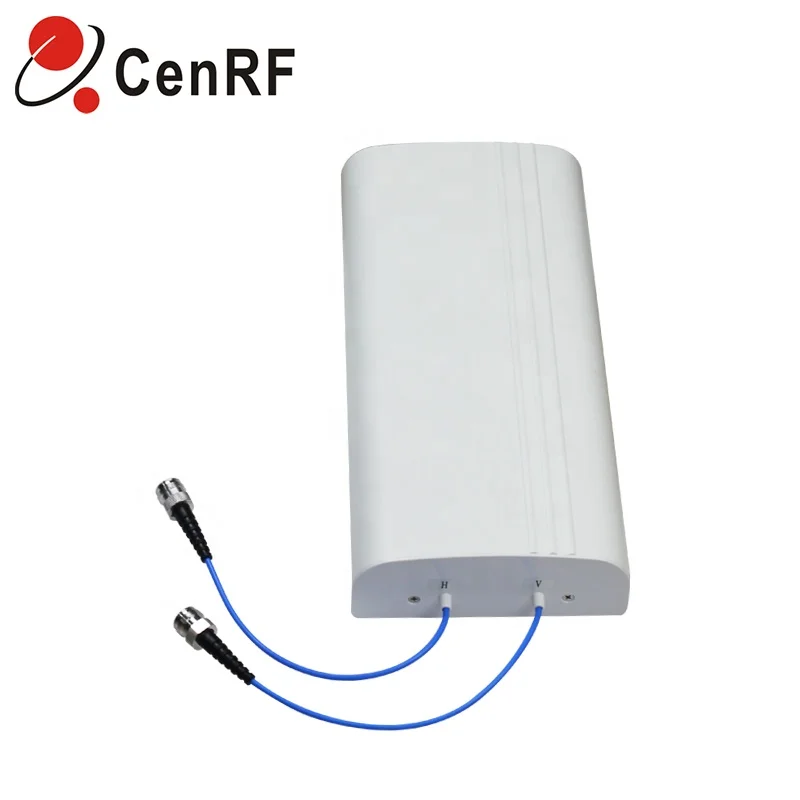

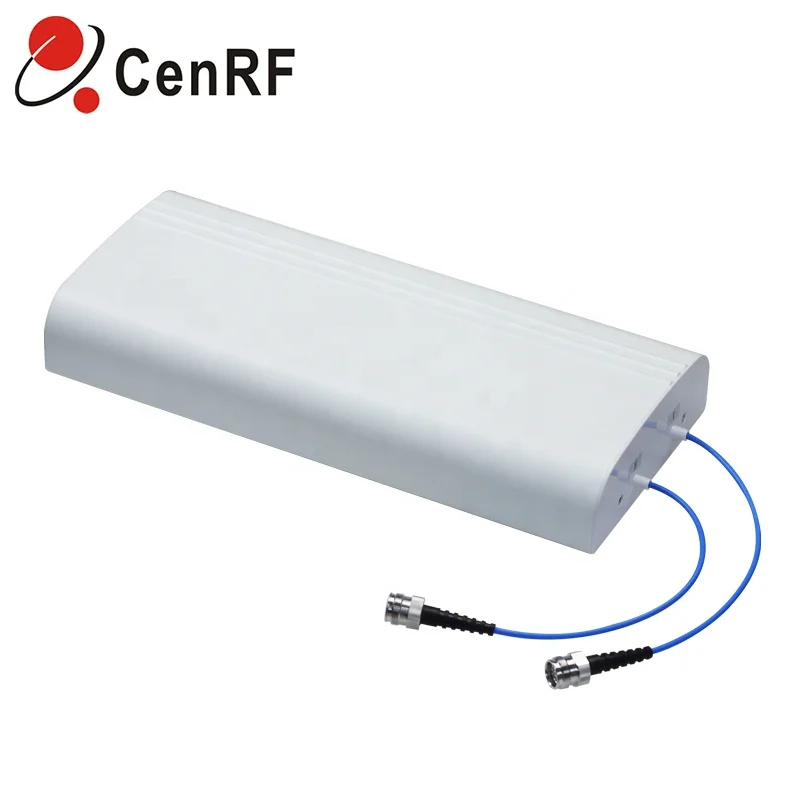

5G Product 698-4000mhz Antenna MIMO Panel RF 5G Signal Antenna for Communications

1. Excellent Electrical Performance
2. Wide Frequency Range
3. Totally Maintenance Free
Electrical Specifications
Frequency Range(MHz)
698-806
806-960
1710-2170
2200-2700
3400-4000
Gain(dBi)
5.0±0.5
6.0±0.5
7.0±0.5
7.5±0.5
8.5±0.5
VSWR
≤2.0
Polarization Type
Vertical and Horizontal
Vertical Beamwidth
73°
70°
60°
60°
30°
Horizontal Beamwidth
80°
80°
65°
60°
55°
PIM(IM3)
≤-140dBc @ 2x2W
Max Power
50W
Input Impendence
50Ω
Mechanical Specifications

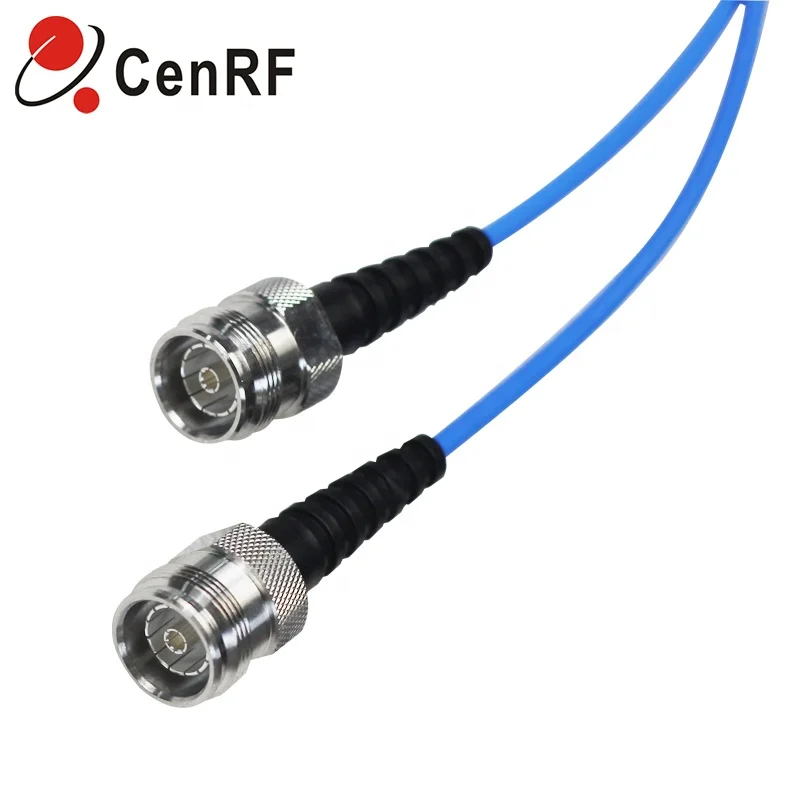

Connector Type
4.3-10 Femalex2
Weight
1.5Kg
Dimension
400x180x62mm
Radome Material
Uv-Protected ABS
Radome Color
White, RAL9003

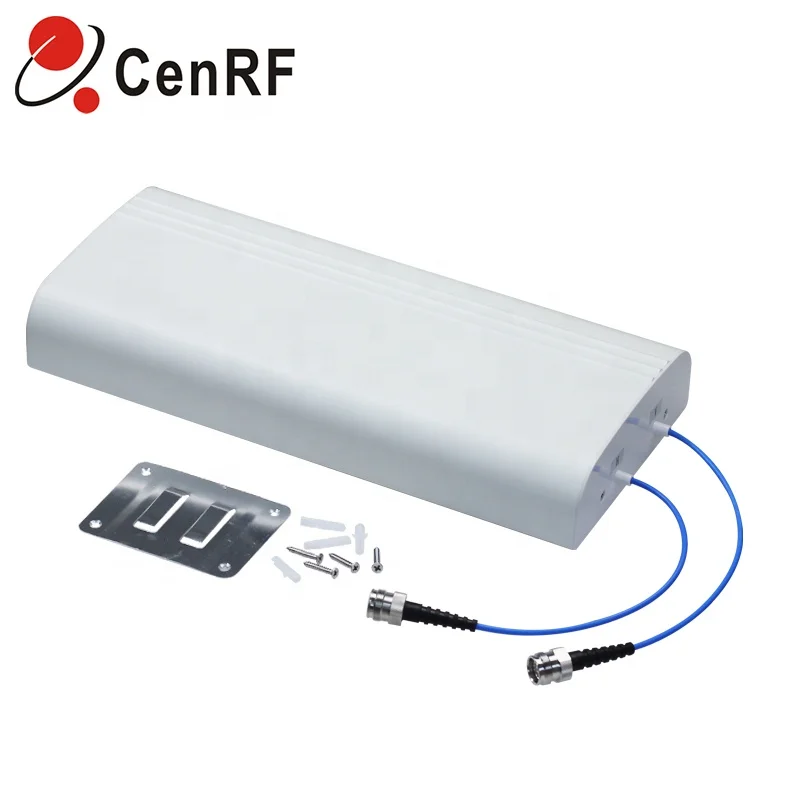

Mounting Type
Wall Mounting

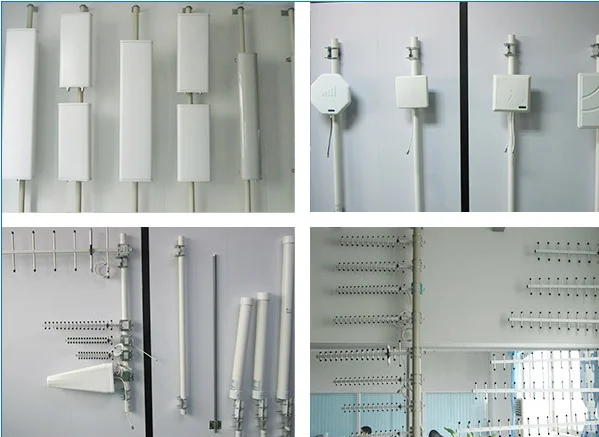

Products Show

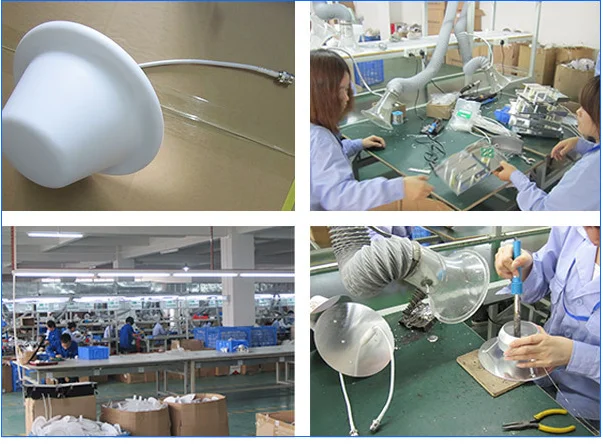

Antenna workshop
