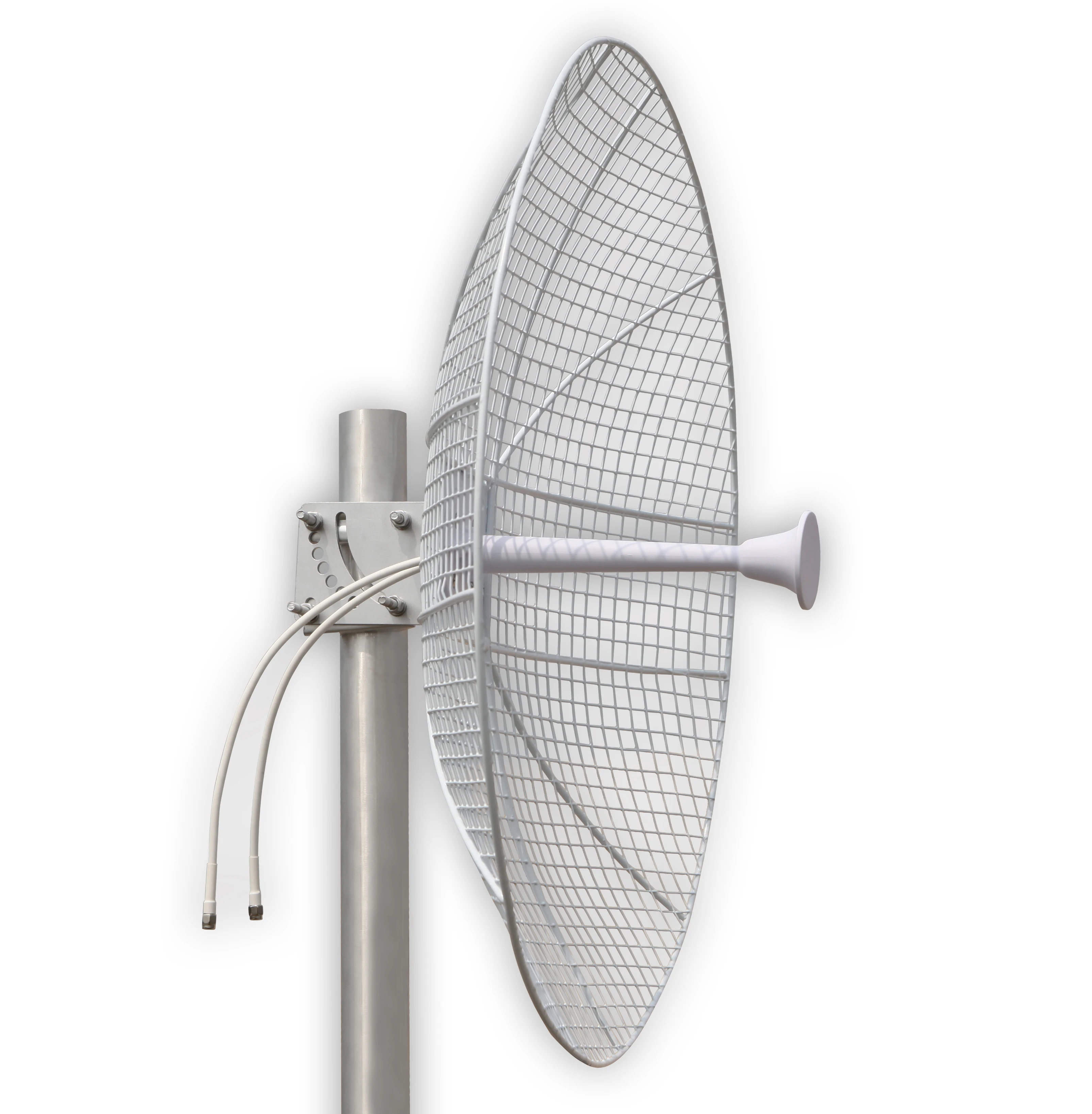

4.9-6.5GHz 0.6m 28dBi mimo Grid Antenna for mimisa A5c radio Lanbowan

$861,156.00

Category:

Description

Advertisements
Product Description

Features

1.Stable gain over ultra-wide bandwidth of 4.9 GHz – 6.4 GHz

2.Optimized F/B & side-lobe suppression minimizes interference
3.Installs in minutes to reduce service calls and installation time
4.Quick connect waveguide allows rapid change of polarization
5.Integrated handle / hoisting hook for added safety and convenient installation
6. Heavy-duty bracket with fine elevation and azimuth adjustment

Application

* Campus and Academic Installations
* High Power, Long Range Point to Point applications
* Wireless Internet Providers and ISPs
* Disaster recovery and rapid deployment applications
* Municipal and Government Installations

Product Paramenters
Model
ANT4865D28PG-MIMO
Frequency range
4.9-6.5GHz
Gain
28dBi
VSWR
<2.0
Polarization
Dual Slant (V/H or ±45°)
Isolation
>30dB
Front to Back Ratio
>30dB
Azimuth Beam Width
Elevation Beam Width
Maximum Power
50W
Impedance
50Ω
Lighting protection
DC Ground
Connector
2-RPSMA/N Male/N Female
Antenna Size
φ0.6m
Antenna Weight
1.5kg
Antenna color
white
Diameter of the Pole
Φ30mm to φ50mm
Mechanical Tilt
± 15°
Operational Temperature
-40°C to +70°C (-32°F to +158°F)
Antenna Patterns
Contact us
Lanbowan Communication Ltd.
Rm. 702-2, Tower #3, No. 60 Lang Bao Xi Road, Chancheng District, Foshan
Http://www.lanbowan.com
Email:[email protected]

Advertisements
WeChat: +8618666366188
Skype: Lanbowan9
Tel:+86-757-8225 3850
Fax: +86-757-8262 1650
Company Profile
Company Profile
Lanbowan is an international, China-headquartered company,Since our foundation in 2006, we’ve combined forward-focused technological thinking with a determination to understand and respond to the real needs of our customers.

We design and manufacture precision antennas and offer in-house wireless product development for our customers, including design, testing, radio integration, and manufacturing capabilities. Lanbowan antennas are deployed in wifi,CBRS, TVWS, small cells, and devices for the Industrial Internet of Things (IIoT).
We works with you to enable your company to achieve the best possible performance from your wireless devices. We can custom-design to suit your individual needs or provide highly-economical off-the-shelf solutions.
Reception
Conference Room

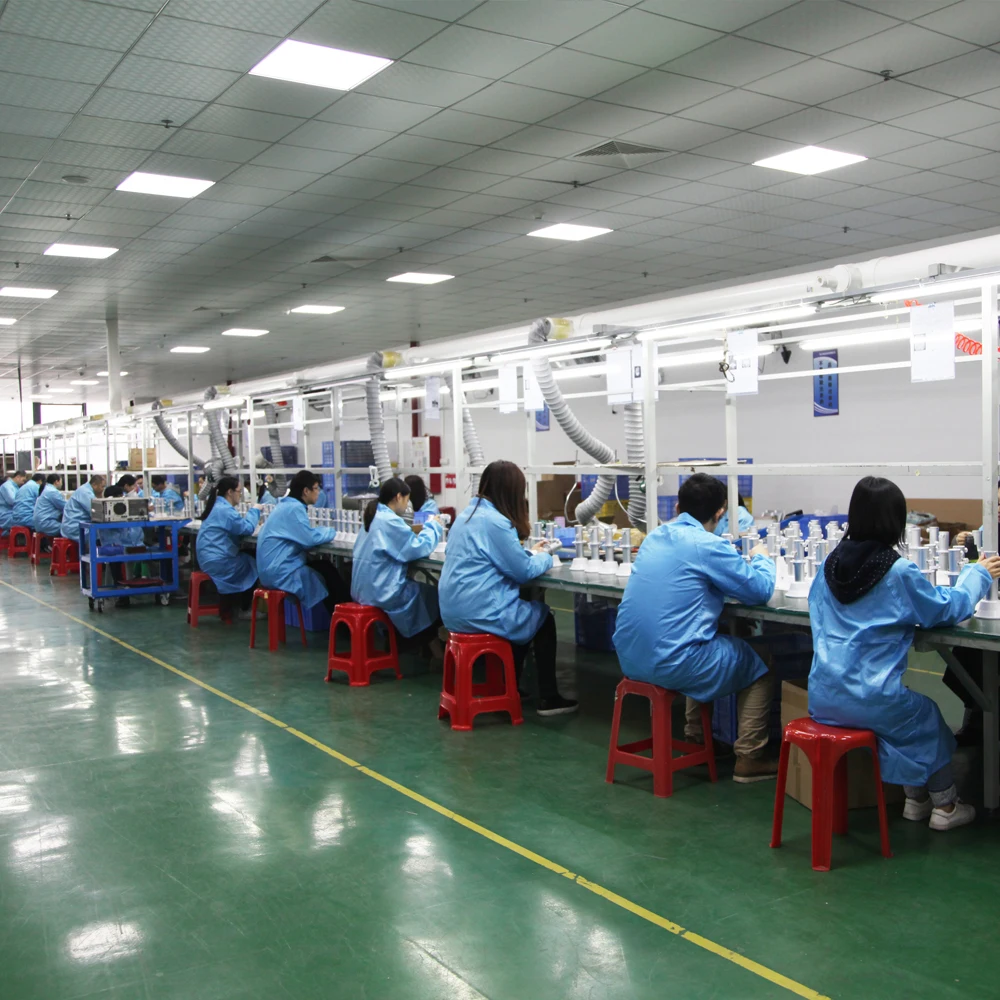

Product workshop

Our Services

1,2G/3G/4G Antennas

2, CBRS/5G Antennas
3, Wifi Antennas
4, RFID/LORA Antennas
5, TVWS Antennas
6, Microwave Antennas
7, IOT Antennas

Futurecom

MWC Barcelona

Wispalooza

CommunicAsia

CTIA WIRELESS

Gitex

Packaging & Shipping
· DHL, UPS, FedEx, TNT, Aramex, Freightage, EMS
